Samyang 12mm F2.0 NCS
CS Lens Review: Landscape Astrophotography
My full-frame DSLR just doesn’t get the use my little Fuji
X-trans CSC does. Realistically, landscape astrophotography often involves
hiking and I can rarely be bothered hiking with my EOS5D. Last year, when I
went to the US for the Grand Canyon Star Party, the Fuji was the only camera I
could squeeze into my 30+ Kg of astro-luggage (of
which just 1 Kg was personal items).
So, for landscape astrophotography I have switched from
full-frame to the Fuji, which has a very low noise sensor anyway and is much
more convenient for travel, especially if I am loaded up with other gear. On paper,
Fuji make some ideal fast primes for astrophotography too, especially the F1.4
XFs - 16mm and 23mm. Unfortunately, the Fuji XF 23mm lens proved to have too
much coma at the edges, so instead of the 16mm I bought the lens I am testing
here – the much cheaper and smaller Samyang 12mm F2, a lens available for
various other cameras as well.
Samyang have developed a reputation for landscape astro’ lenses, especially with their 24mm F1.4. The 12mm is
quite a lot slower, but given its short focal length that shouldn’t matter –
just give it a longer exposure and it will still be free of star trails.
Note: All the example images below
are straight from the camera. Apart from cropping and re-sizing, I have done no
post-processing of any kind.
At A Glance
|
Lens |
Samyang 12mm F2 |
|
Type |
Prime |
|
Mount |
Fuji X-mount |
|
Aperture range |
F22 – F1.4 |
|
Size |
73mm x 59mm |
|
Weight |
260g |
|
Focus |
Manual focus only |
|
Max exposure time for landscape astrophotography |
15-20s (minor star trails start from ~18s) |
Data from Samyang/Me.

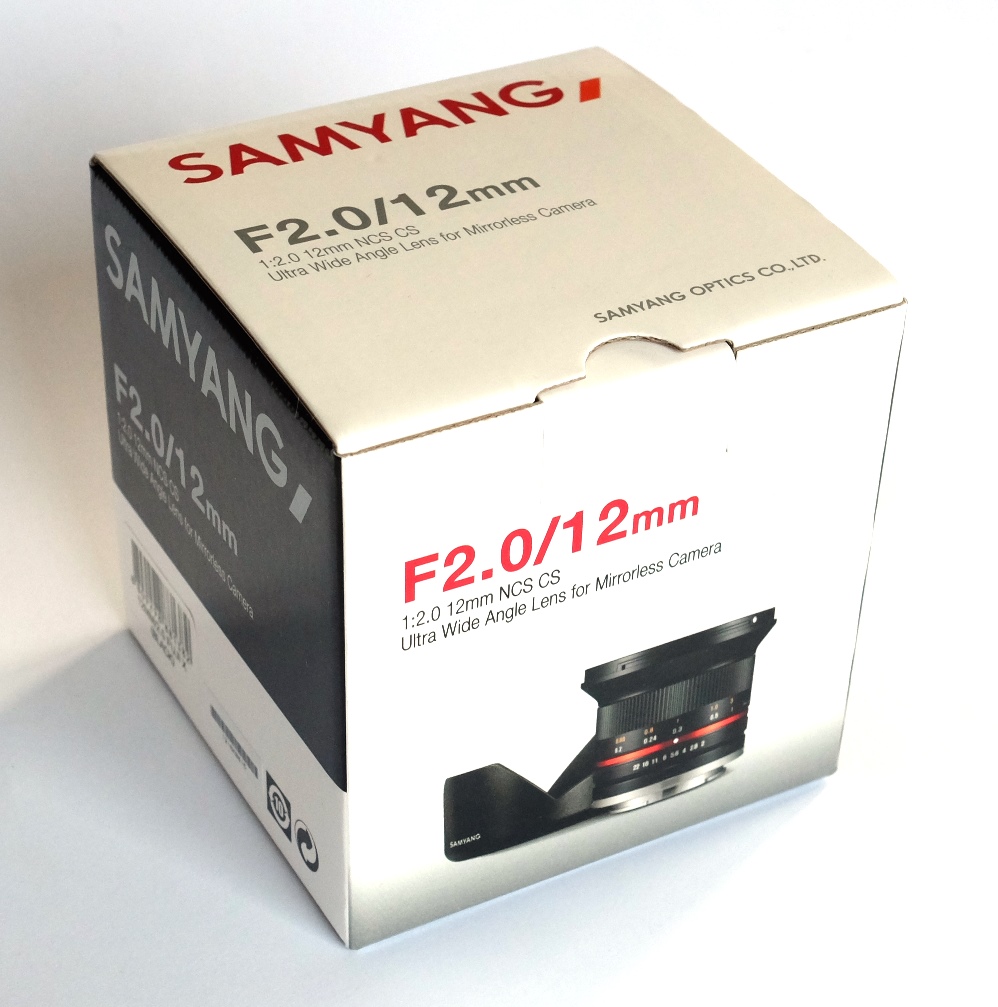

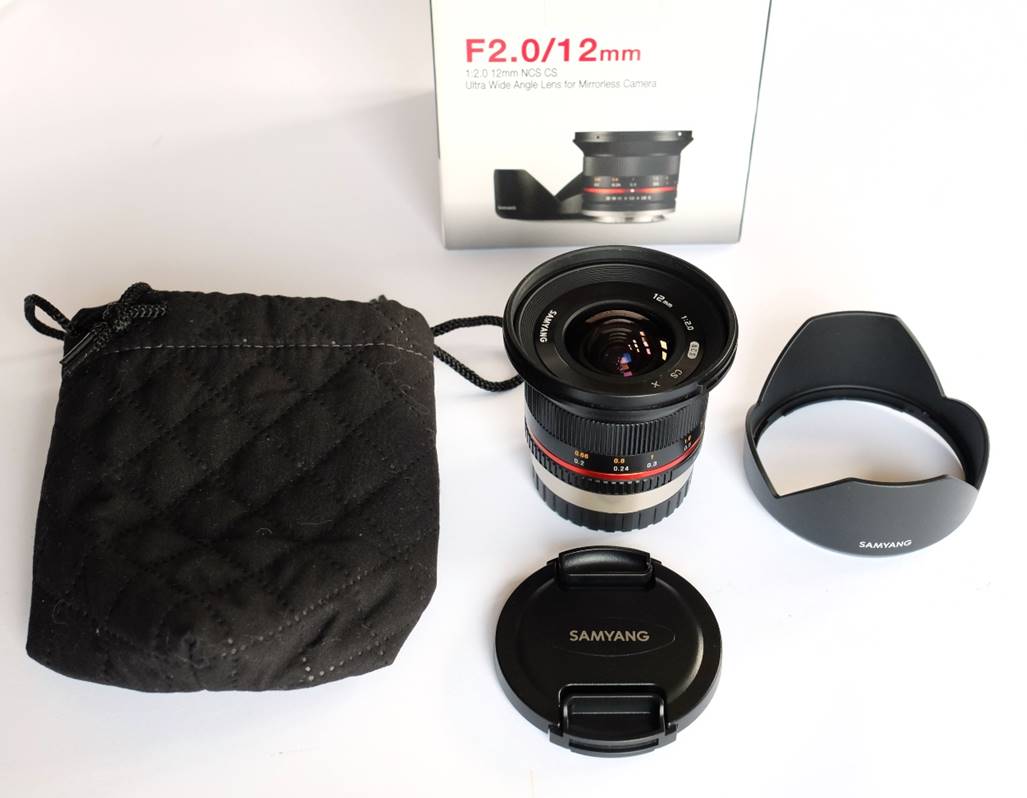

What’s In the box?
Samyang include end caps a lens shade and a lens bag.

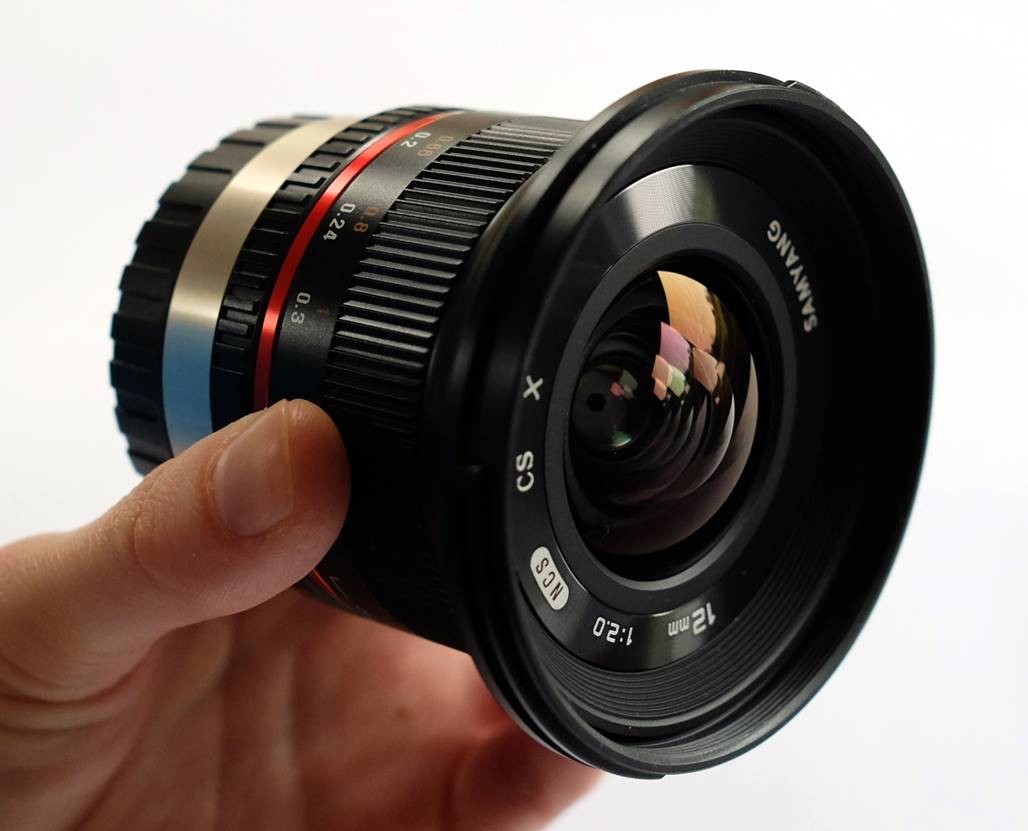

Design and Build
Like other Samyang lenses, build quality is excellent. It
doesn’t have the premium look and feel of a Fuji XF or a Zeiss or Leica lens,
but the plastic is solid and built on a metal chassis. The front elements are
very steeply curved and look well coated; they are quite small on this lens,
which may explain why it’s much cheaper than say the 24mm F1.4.
The controls are all-manual and work well. The aperture ring
has a nice feel with positive click stops and an intermediate setting between
each main stop. The focus is mostly smooth and accurate, but makes a
‘squelching’ noise sometimes and is occasionally slightly ‘grittier’ than the
best. Fully manual controls don’t bother me – I almost always focus landscapes
on manual anyhow and I like the fact that there is less to go wrong.
The Samyang 12mm F2 is significantly smaller and lighter than
Fuji’s own fast, wide-angle primes – a bonus when travelling light (or trying
to).
In Use – Daytime
As usual, I will be focusing this review on astrophotography,
but a brief comment on daytime performance is in order.
In the daytime, the Samyang 12mm F2 produces reasonably sharp
and very wide images. Centre field quality is good. Image quality drops off a
bit in the corners and chromatic aberration on high contrast subjects
increases, but it’s good for a lens as short as 12mm. There is more corner
darkening (caused by vignetting) than with the best Fuji XF lenses, but less
than many (most?) full-frame primes. There is some distortion, but that’s to be
expected with such a wide angle (98.9°).
Overall, the Samyang 12mm excels at landscape and
architecture shots, with that wide angle really adding drama to your
compositions. The maximum aperture of F2 is completely usable and allows some
control over depth of field, even on such a short focal length.
The wide field adds drama to sky-scapes,
day or night.
F2: Still quite sharp and gives a usefully shallow depth of
field (ISO 400, 1/2500)
In Use – The Night Sky
The maximum aperture of F2.0 is a bit slower than I would
like for astrophotography, but it’s not the issue you might think. Why? Because
the shorter the focal length, the longer you can leave the shutter open without
producing star trails (trails are always there, of course, it’s just that they
are shorter than the resolution of the sensor). In this case, trails only start
beyond 15s and are still manageable at 20s, compared with about 8-13s for my 23mm
lens. Overall, that means you can probably get a similar exposure to the Samyang
24mm F1.4 at a given ISO. With a fairly clean ISO setting of 2500-3200 it’s enough
to capture plenty of Milky Way, lots of fainter stars and some nebulosity too.
So far, that makes the little Samyang similar in astro’ performance to Fuji’s own Japanese-made fast XF
primes. But where the Korean lens really wins is in edge performance. The XF
primes tend to be well corrected across much of the frame and then suffer from a
lot of coma and astigmatism at the corners - bloating stars tangentially and
giving a strange circular look to the outer parts of the image which I don’t
like. In comparison, the Samyang 12mm has much less coma and the remaining
astigmatism is progressive and largely radial (star elongate away from the centre),
mainly noticeable in the corners. So, with a bit of judicious cropping, you
could get shots as wide as Fuji’s XF 16mm, but with sharp stars edge-to-edge.
The Samyang 12mm still isn’t perfect, though. There is some corner
darkening, caused by vignetting, unlike a Fuji XF prime. Chromatic aberration
(false colour) is better than the Fuji centre field, but still quite
noticeable, especially at the edges where stars show violet blur.
Overall, landscape astrophotography
performance is as good or better than Fuji’s own, much more expensive, fast
primes; the Samyang 12mm F2 is usefully smaller and lighter too.
Samyang 12mm lens at F2: 18s at ISO 3200: Milky Way, Orion
and Taurus in my polluted skies. Edge performance is good but vignetting
evident as darkened corners.
100% crop of top left corner shows some vignetting and
astigmatism, but coma is well controlled.
Summary
The Samyang 12mm F2 is a bit of a find for landscape
astrophotography. It’s fast enough to capture the Milky Way, wide enough to
create dramatic images and allow longer exposures without star trails. Most
importantly, though, it is pretty sharp at the edges, with much less off-axis coma
and astigmatism than the depressing norm from the big players. This means nice
tight stars to the edge (if not the very corners), which really improves sky-scapes and avoids having to crop out the drama from that
special shot. The icing on the cake is its relatively low price compared to the
competition and its very compact size.
The only downsides are the occasional squelch from the
focuser, a bit more corner darkening (vignetting) than you get with Fuji’s own
XF lenses and the slower-than-ideal maximum aperture of F2.
Mated to one of Fuji’s smaller X-Trans bodies, the Samyang
12mm F2 makes for a landscape astro’ rig that will go
on a tiny tripod and is much easier to travel and hike with than a big DSLR and
lens combo. I fully intend taking mine to some interesting places – check this
article for updates. When I get some images from a proper dark sky site I will
post them here.
Not as fast as I would like, it is still an excellent lens
for landscape astrophotography - super small and light for travel to and around
those dark sky locations. It’s cheap as well. An easy ScopeViews
Best Buy.
Eta Carinae and meteor from Mauna Kea: 15s ISO 2000.

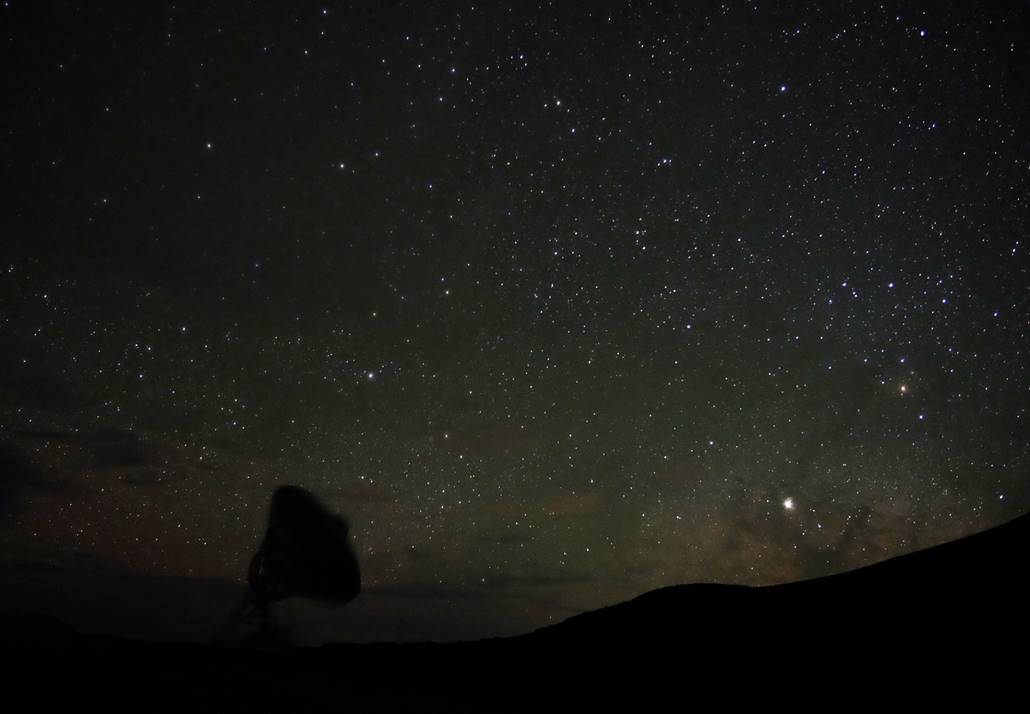

VLBA Dish at Mauna Kea moves into position against Milky Way: 20s ISO 3200.
Lick Observatory main deck: 13s ISO 1600.

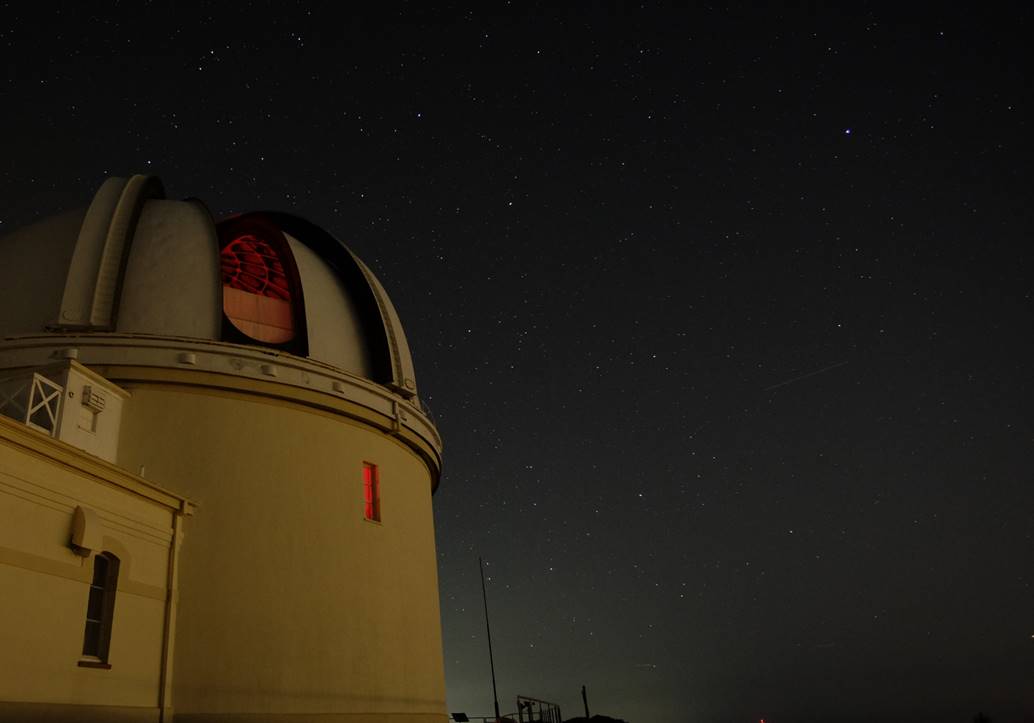

Dome of the 36” Great Refractor at Lick: 10s ISO 1600.
